Ceeform / Commando Leads

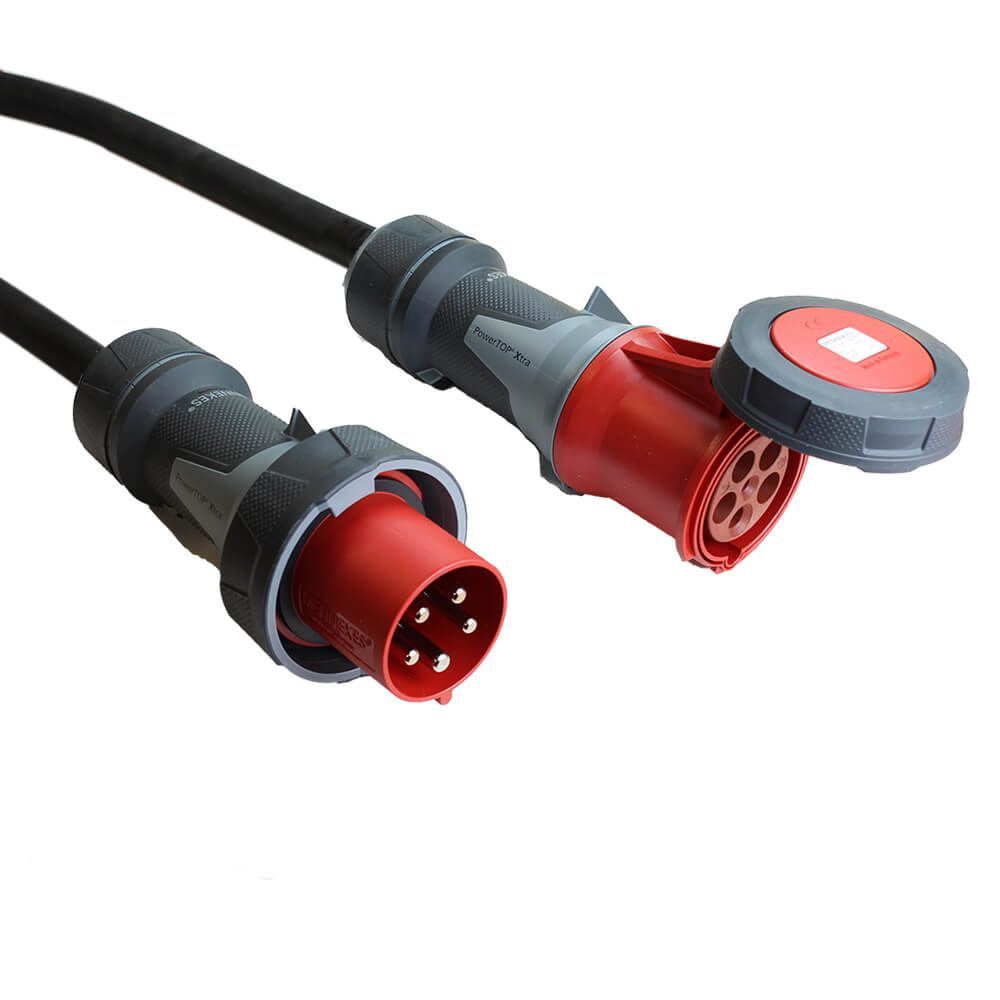

16A / 32A / 63A / 125A Tour Grade Heavy Duty Ceeform / Commando Leads
We can manufacture bespoke grommets for Ceeform plugs and couplers, as well as offering both heat shrink & cold shrink strain reliefs, particularly useful on fan out cables.
Reliable, durable and flexible – we use industry leading, high quality heavy duty Titanex H07RN-F as standard on our commando leads. Single phase 3 core cable up to 35mm² / Three phase 4 or 5 core cable up to 35mm².
Other cable types and brands are available.
IP67 Couplers Available
Complete protection against dust and temporary immersion in water – tested to withstand periods of 30 minutes of immersion in water to a depth of 1 metre.
We only use industrial plugs and couplers from reliable high quality European manufacturers, such as Mennekes, PCE, Bals and Walther. All fitted to the appropriate torque settings by experienced technicians, and fully tested before leaving the factory.
Clear heat shrink tubing, or printed Brady labels can be fitted for labelling, numbering & identification purposes. Laser engraving is possible on some connectors logos and text.
110V - 415V / 16A - 125A
Available in 110V, 230V, 415V / 3P, 4P, 5P
1.5 – 2.5mm² cable for 16A applications
4 – 6mm² cable for 32A applications
10 – 16mm² cable for 63A applications
25 – 35mm² cable for 125A applications
16A Power Extension Leads
32A Power Extension Leads
63A Power Extension Leads
125A Power Extension Leads
LV Motor Looms, Fan Outs & Fan Ins
We manufacture the full range of CEE form (IEC 60309) extensions on flexible, heavy duty H07RN-F rubber cable, from single phase 16A leads, up to 125A 415V three phase beasts using 5 cores of 35mm². And we keep high stocks of Nexans Titanex cable, the standard for the events industry.
Whether 10m leads for studio use or 100m plus for outdoor arenas, we deliver high quality solutions to short deadlines, from purpose built premises in Congleton, Cheshire.
Available in 110V & 230V for single phase applications, and 415V for three phase, with current ratings between 16A and 125A.
